Code	Minimum Test Pressure	Minimum Shell Thickness	Pressure Relief Provisions	Bottom Opening Provisions
T1	1.5	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	2 shut-off devices
T2	1.5	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	3 shut-off devices
T3	2.65	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	2 shut-off devices
T4	2.65	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	3 shut-off devices
T5	2.65	5 mm if D < 1.80 m or 6 mm if D > 1.80	Safety relief valve with bursting disc in series	Not allowed
T6	4	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	2 shut-off devices
T7	4	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	3 shut-off devices
T8	4	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	Not allowed
T9	4	6 mm	Normal (no bursting disc required)	Not allowed
T10	4	6 mm	Safety relief valve with bursting disc in series	Not allowed
T11	6	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	3 shut-off devices
T12	6	5 mm if D < 1.80 m or 6 mm if D > 1.80	Safety relief valve with bursting disc in series	3 shut-off devices
T13	6	6 mm	Normal (no bursting disc required)	Not allowed
T14	6	6 mm	Safety relief valve with bursting disc in series	Not allowed
T15	10	5 mm if D < 1.80 m or 6 mm if D > 1.80	Normal (no bursting disc required)	3 shut-off devices
T16	10	5 mm if D < 1.80 m or 6 mm if D > 1.80	Safety relief valve with bursting disc in series	3 shut-off devices
T17	10	6 mm	Normal (no bursting disc required)	3 shut-off devices
T18	10	6 mm	Safety relief valve with bursting disc in series	3 shut-off devices
T19	10	6 mm	Safety relief valve with bursting disc in series	Not allowed
T20	10	8 mm	Safety relief valve with bursting disc in series	Not allowed
T21	10	10 mm	Normal (no bursting disc required)	Not allowed
T22	10	10 mm	Safety relief valve with bursting disc in series	Not allowed
T50	Varies by Gas	Varies by Gas	Varies by Gas	Varies by Gas

Top

装货计算方法

如何计算您所装载的货物是否符合IMO / IMDG运送规定的最大 / 最小重量限制?
将本公司所配置的罐箱容积乘以产品比重(density or specific gravity)，所得的结果再与下列标准相对照：
非危险品：75%~97% (即该产品装载容积最低应为该罐箱的75%；最高不能超过97%)
危险品：80%~95% (即该产品装载容积最低应为该罐箱的80%；最高不能超过95%)
以最通用24,000公升罐箱并分别以
丙硐 (ACETONE/ IMDG CLASS 3, UN NO.1090，SG：0.79)
及环氧树脂（EPOXY RESIN/ NON-HAZ；SG：1.16）为例试算：
ACETONE/ 24,000L x 0.79= 18,960KGS (100%满装) x 0.95= 18,012KGS(最大限装重量)
EPOXY RESIN/ 24,000L x 1.16=27,840KGS (100%满装) x 0.80= 22,272KGS(最小限装重量)

为什么必须考虑最大 / 最小装载限重?
基于不同运输工具的考虑，罐箱可能通过公路/ 铁路/ 海运等不同方式进行联运。
当罐箱由拖车在公路运送时，倘若最低装载容积不在75%以上，液态货物在刹车时由于惯性的作用，
在罐箱内产生剧烈晃动，容易导致事故发生。反之，若无最高装载容积率的限制，
货物在运输过程中受到温度变化等因素作用有溢出的危险。
因此接受罐箱公司的建议，在指定的装载量范围内填装货物是必要的。
当然，最大限装重量还必须遵照各国/ 地区的道路限重法规。
确认出运前请与本公司服务人员联系，我会提供准确与满意的答复。
Top

Container IMO 5

Construction cylindric steel pressure vessel
with sunshield insulation
fitted in a 20 foot ISO beam frame
stackable 6 high
Internal Capacity 25.300 liters
Pressure MAWP 29 Bar / Test 36
Dimensions length: 6058 mm / 20f
width: 2438 mm / 8f
height: 2591 mm / 8f6
Weight tare 8.060 kg
max Gross 34.000 kg
Products all standard IMO 5 – list enclosed
Tank material mild Carbon steel
sunshield insulation Aluminium
Safety valves 1 Safety valve DN 80
Fittings liquid phase flange DN 50 hole circle 125 mm
diameter 165 mm / 4 holes m18
gas phase flange DN 50 hole circle 125 mm
diameter 165 mm / 4 holes m18
Hydraulic system valve opening / closing by hydraulic pump system
Service temperature minus 20 till +65°C
Manometer 1 manometer with shut off valve
Thermometer 1 thermometer
Liquid level meter 1 Magnetel system at the side of the tank
Remote shut off quick remote shut off device operated by release
Cord Approvals IMO 5, ADR, RID, ISO, CSC

top

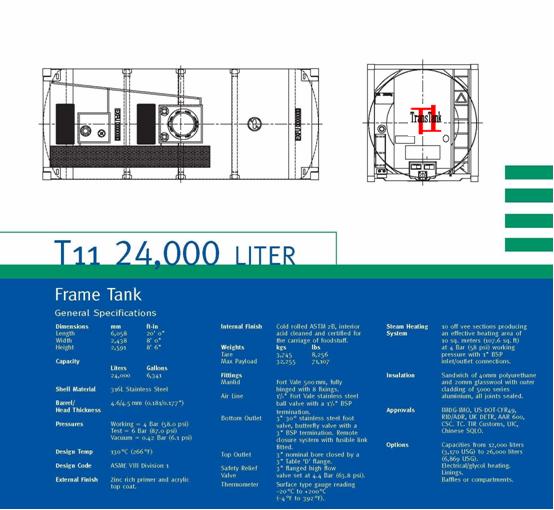

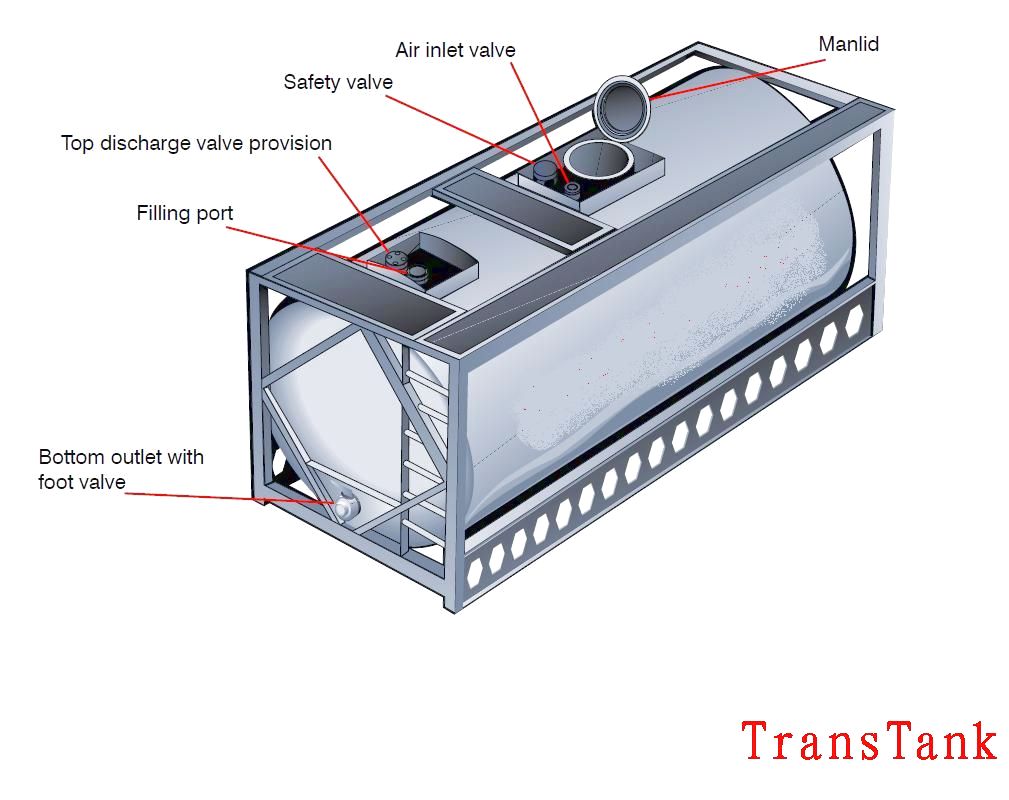

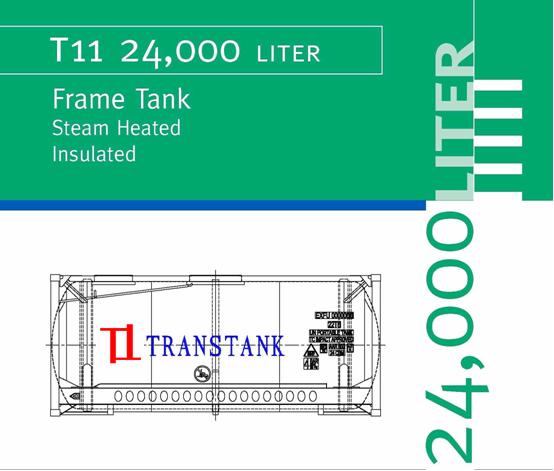

T11 图解


T11	T11
T11是标准的集装罐，容积从21立方至26立方不等，操作压力：4公斤（BAR）	实验压力：6公斤（BAR），适合充装货物CLASS3，6，8，9

top

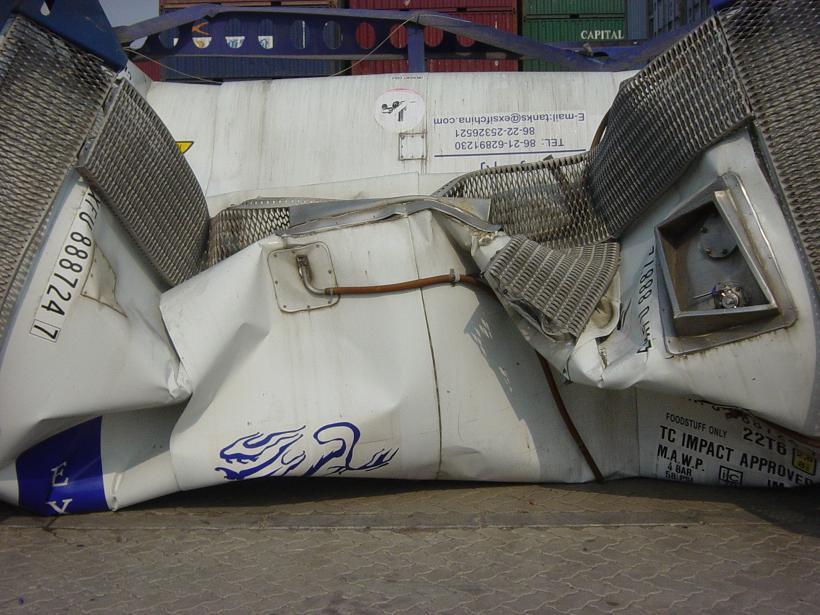

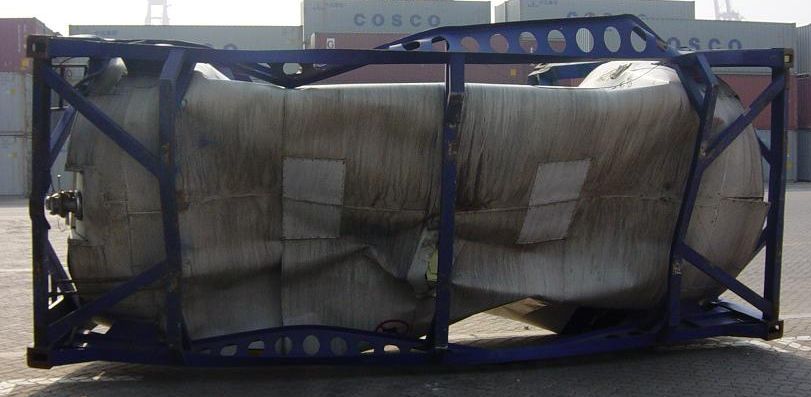

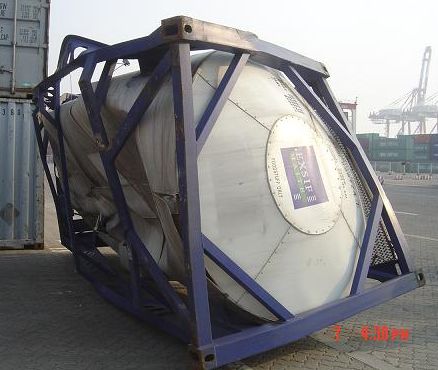

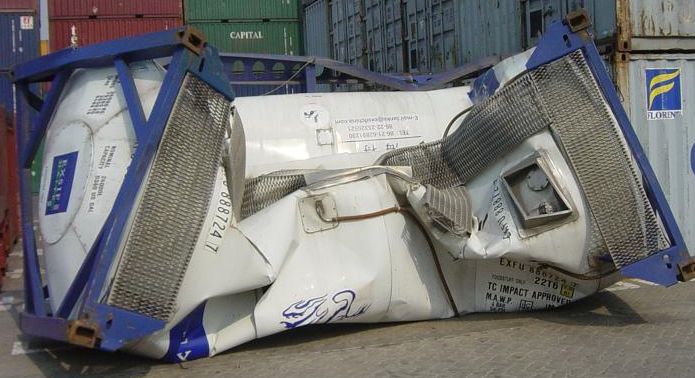

负压造成的集装罐事故
